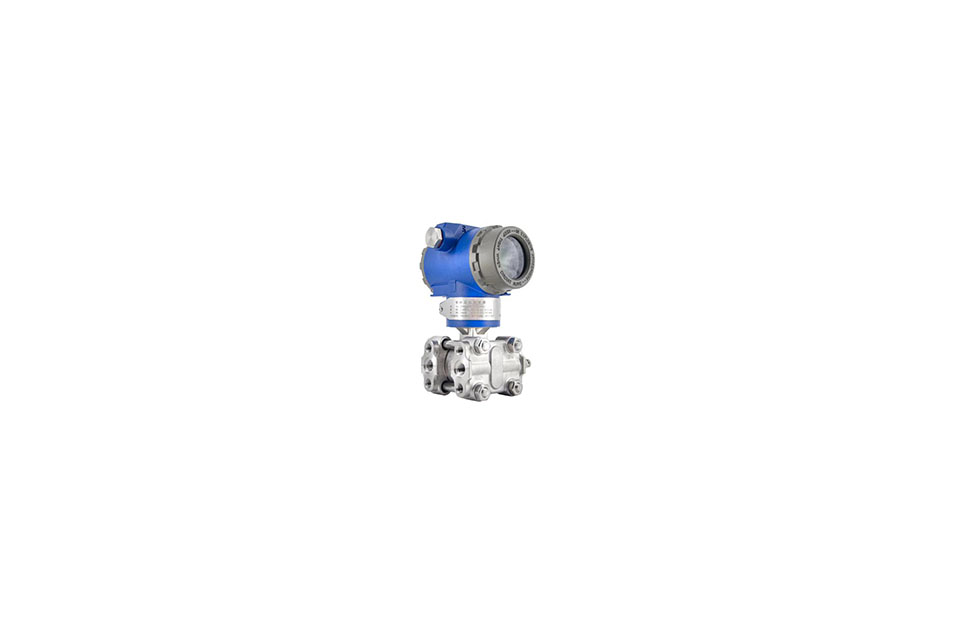

DP800 Industrial Grade Pressure Difference Transmitter
DP800 is an industrial-grade pressure difference transmitter based on diffused silicon technology, with high precision and good stability. It is widely used for measuring pressure difference parameters of gas or liquid medium in HVAC, biopharmaceutical, vessel and other industries. The user can choose the output signal according to the need: 4~20mA or 4~20mA+HART protocol. DP800 has a minimum pressure measurement range of 0~1KPa and a maximum of 0~6MPa. It can measure a variety of non-corrosive, non-hazardous gas and liquid medium.
Typical Applications
HVAC
Biopharmaceuticals
Vessel
Technical Features
Stable performance, excellent EMC performance
Pass high and low temperature, salt fog, temperature and humidity tests
Measuring medium: liquid, gas, steam
Technical Data
Input and output
|
Operating voltage
|
24V DC ±20%
|
|
Current output
|
4~20mA+HART protocol RL < 500 Ohm
|
|
Power consumption
|
Current output: ＜ 15mA (typical value)
|
|
Channel precision: ±0.2%FS
|
Measurement Parameter
|
Measurement range
|
0 ... 1KPa to 0 ... 6MPa (optional)
|
|
Sensor
|
Diffused silicon technique
|
|
Measurement precision
|
A1: ±0.1%FS (FS indicates full scale)
|
τ63 response time
|
≤0.5ms
|
|
|
A2: ±0.25%FS
|
Temperature characteristics
|
< 0.03%FS/℃
|
|
|
A3: ±0.5%FS
|
Long-term stability
|
≤ ±0.1%FS/3 year
|
|
Overload pressure
|
10xFS
|
|
|
The above precisions are comprehensive precisions, including repeatability, linearity and hysteresis of the measurement, and can be traced to the CNAS standard.
Technical Specification
|
Wiring connection
|
The maximum cable diameter of the terminal is 1.5mm2
|
|
EMC
|
EN 6100-4-2/3/4/5
|
|
Temperature compensation
|
-20 ... +85℃
|
|
Protection grade
|
IP68
|
|
Storage temperature
|
-20 ... +60℃
|
|
Vibration resistance (10~2000Hz)
|
≤ 20g
|
|
Operating temperature
|
-40 ... +80℃
|
|
Load
|
RL ≥ 5kΩ
|
|
Fluid temperature
|
-40 ... +125℃
|
|
|
|
Data download:
DP800 Industrial Grade Pressure Difference Transmitter Product Manual
